High-Performance Titanium Channel Packaging in Carton - Titanium Metal/Alloy
Titanium alloys have been widely used in aviation industry and aerospace technology because of their high specific strength, heat resistance and corrosion resistance. The advantages of using the hot extrusion process to produce titanium alloy profiles are that the hot extrusion method makes the deformed metal have the best three-way compressive stress state, so that higher quality products can be obtained.
At the same time, in the process of hot extrusion, if the temperature of hot extrusion is too high and the cooling rate is too fast, it will cause danger to the physical properties of the profile, so it is important to study the effects of hot deformation temperature, cooling rate and other parameters on the performance of U profile hot extrusion.
In this study, the effects of straightening heating temperature and cooling rate on straightening deformation, microstructure and properties of U profile were studied. The results show that under the same cooling rate, the straightening deformation effect of U profile is good with the straightening temperature increasing. At the same heating temperature, with the decrease of cooling rate, the resilience after high temperature straightening deformation is smaller, and the straightening deformation effect of U profile is better. When the straightening heating temperature is 720℃ and the cooling rate is 30℃/min, the straightening U profile meets the relevant requirements of AMS2245 "Dimensional Tolerance of Titanium and titanium alloy extrusion bars, bars and profiles"; The straightening heating temperature is not higher than 720℃, and the straightening process does not change its structure and properties.

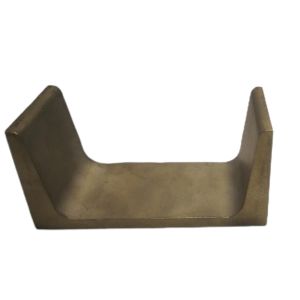

Titanium Channel
| No. | Production name | Specification(mm) | Length(mm) | About Kgs per piece | remark |
| 1 | 5# channel | 50X38X4.5 | L=6000 | 18.74 | Equal sides |
| 2 | 6.3# channel | 63X40X4.8 | L=6000 | 22.86 | Equal sides |
| 3 | 8# channel | 80X43X5 | L=6000 | 27.73 | Equal sides |
| 4 | 10# channel | 100X48X5.3 | L=6000 | 34.49 | Equal sides |
| 5 | 12# channel | 120X53X5.5 | L=6000 | 41.56 | Equal sides |
| materials | Gr1,Gr2,Gr3,Gr4,Gr5........ | ||||
| Standards: | GB/T706-2016,GB/T37520-2019,GB/T41750-2022,N/HL 001-2021,N/HL 002-2021,ASTM F67,AMS4928,ASTM F136,ASTM B348,BT1-0,TP270,TP550,TP450 etc. | ||||
| Parameter | Value |
|---|---|
| Material | Titanium Metal/Alloy |
| Size | Customized |
| Packaging | Carton |
| Application | Industrial |
| Color | Silver |
| Surface Treatment | Bright, Smooth, Clean |
| Name | Titanium Channel |
| Standard | ASTM F67, AMS4928, ASTM F136, ASTM B348,BT1-0, TP270, TP550, TP450 Etc. |
| Technology | Forging, Tying, Annealing, Machining,Cold Rolling, Hot Rolling |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr10 |
Titanium metal and alloy have several useful properties, so they are widely used in the production of military equipment. Their good heat resistance is helpful for protecting aircraft engine parts, rocket and missile structural parts from extreme temperatures. Additionally, their low temperature toughness and fracture toughness make them ideal for fabricating fuel and oxidizer storage tanks and high-pressure vessels. Not least, titanium alloys have also been used to produce automatic rifles, mortar mounts and recoilless gun tubes, which are the essential components for military purposes.
Q1. What is Titanium Channel?
A1. Titanium Channel is a product manufactured by FHH in Xi'an, China. It is made from titanium and is used for a wide range of applications.
Q2. What is the minimum order quantity for Titanium Channel?
A2. The minimum order quantity for Titanium Channel is 200kgs.
Q3. How is Titanium Channel packaged?
A3. Titanium Channel is packaged using seaworth shipment materials to ensure the products are safe and secure during transit.
Q4. How long does it take to deliver Titanium Channel?
A4. Titanium Channel will be delivered within 5-8 days after the order is placed.
Q5. What payment methods are available for Titanium Channel?
A5. Payment for Titanium Channel can be made via L/C, D/P, T/T. Supply ability is 200mt per month.
|
|
